PC-56-180

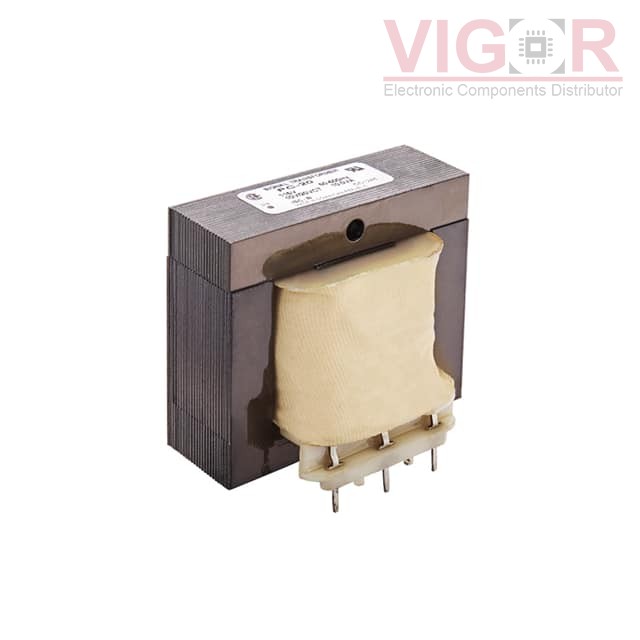

Image is for reference,
please contact us to get the real picture

Part No :: PC-56-180

Manufacturer: Signal Transformer

Description: PWR XFMR LAMINATED 10VA TH

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: PC-56-180 PDF

Availability: 0 pieces

Unit Price: ~~$19.70000~~

Current price of PC-56-180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC-56-180 Specifications

Type	Description
Series:	PC
Package:	Bulk
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V
Voltage - Secondary (Full Load):	Parallel 28V, Series 56V
Current - Output (Max):	Parallel 360mA, Series 180mA
Primary Winding(s):	Single
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	10VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	47.60mm L x 36.50mm W
Height - Seated (Max):	41.27mm
Voltage - Isolation:	1500Vrms
Weight:	0.563 lb (255.37 g)

Please confirm the specifications of the products when ordering.
