PC-20-500

PC-20-500

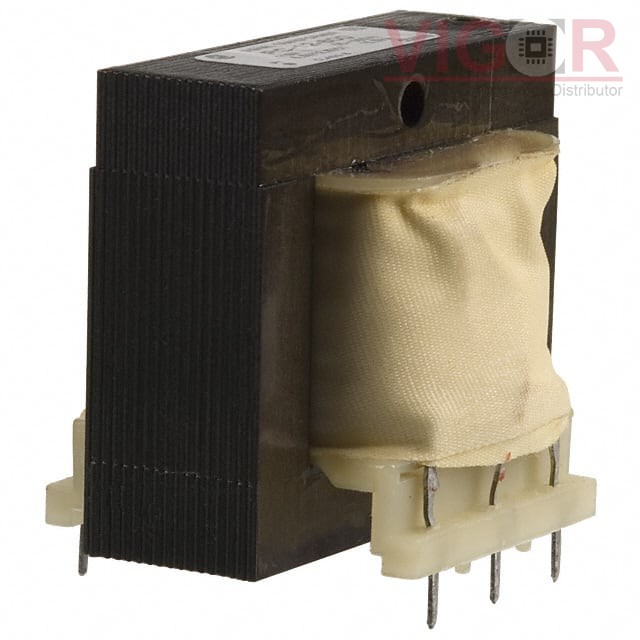

Image is for reference,
please contact us to get the real picture

Part No :

PC-20-500

Manufacturer
Signal Transformer
Description
PWR XFMR LAMINATED 10VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PC-20-500 PDF
Availability
4 pieces
Unit Price
$10.90000

Current price of PC-20-500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC-20-500 Specifications
Type Description
Series:PC
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 10V, Series 20V
Current - Output (Max):Parallel 1A, Series 500mA
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:No
Power - Max:10VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:47.60mm L x 36.50mm W
Height - Seated (Max):41.27mm
Voltage - Isolation:1500Vrms
Weight:0.563 lb (255.37 g)
