F-158XP

F-158XP

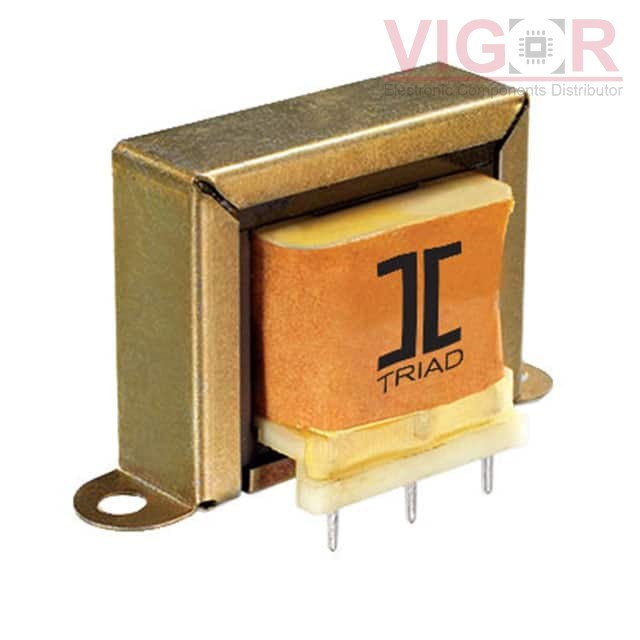

Image is for reference,
please contact us to get the real picture

Part No :

F-158XP

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 7.5VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
F-158XP PDF
Availability
258 pieces
Unit Price
$9.99000

Current price of F-158XP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F-158XP Specifications
Type Description
Series:Single Primary
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 12.6V, Series 25.2V
Current - Output (Max):Parallel 600mA, Series 300mA
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:No
Power - Max:7.5VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:71.42mm L x 37.29mm W
Height - Seated (Max):41.28mm
Voltage - Isolation:1500Vrms
Weight:0.657 lb (298.01 g)
