VPM36-690

VPM36-690

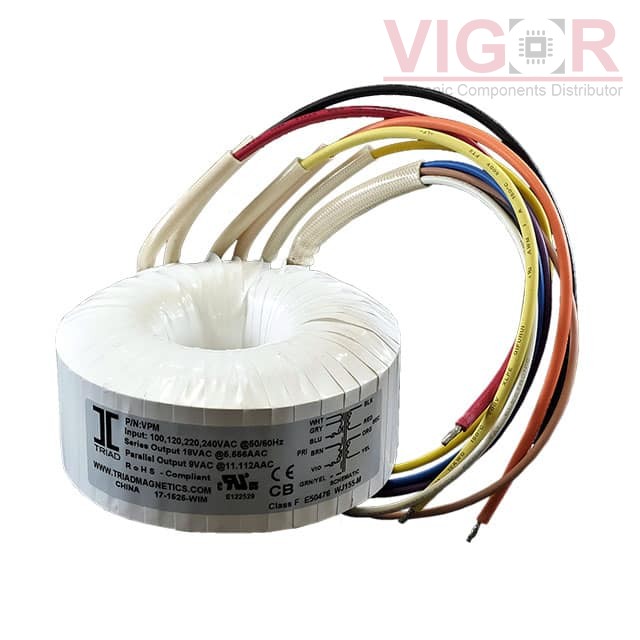

Image is for reference,
please contact us to get the real picture

Part No :

VPM36-690

Manufacturer
Triad Magnetics
Description
PWR XFMR TORO 25VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
VPM36-690 PDF
Availability
36 pieces
Unit Price
$29.97148

Current price of VPM36-690 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VPM36-690 Specifications
Type Description
Series:Toroidal Medical, VPM
Package:Box
Part Status:Active
Type:Toroidal
Voltage - Primary:100V, 120V, 220V, 240V
Voltage - Secondary (Full Load):Parallel 18V, Series 36V
Current - Output (Max):Parallel 1.38A, Series 690mA
Primary Winding(s):Dual, Multiple Taps
Secondary Winding(s):Dual
Center Tap:No
Power - Max:25VA
Mounting Type:Chassis Mount
Termination Style:Wire Leads
Size / Dimension:84.00mm Dia
Height - Seated (Max):37.00mm
Voltage - Isolation:4000Vrms
Weight:1.1 lbs (499 g)
