FS24-800

FS24-800

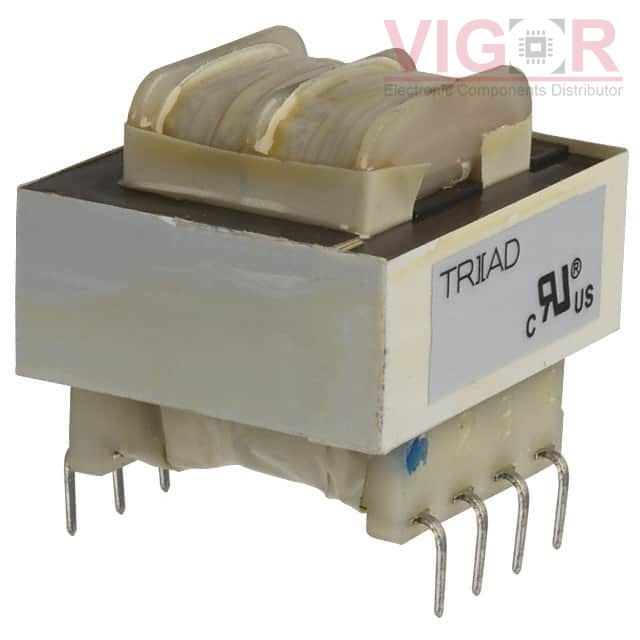

Image is for reference,
please contact us to get the real picture

Part No :

FS24-800

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 20VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
FS24-800 PDF
Availability
0 pieces
Unit Price
$13.53000

Current price of FS24-800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FS24-800 Specifications
Type Description
Series:Split Pack™
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):Parallel 12V, Series 24V
Current - Output (Max):Parallel 1.6A, Series 800mA
Primary Winding(s):Dual
Secondary Winding(s):Dual
Center Tap:No
Power - Max:20VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:57.15mm L x 47.63mm W
Height - Seated (Max):36.50mm
Voltage - Isolation:2500Vrms
Weight:0.8 lb (362.87 g)
