F-243U

F-243U

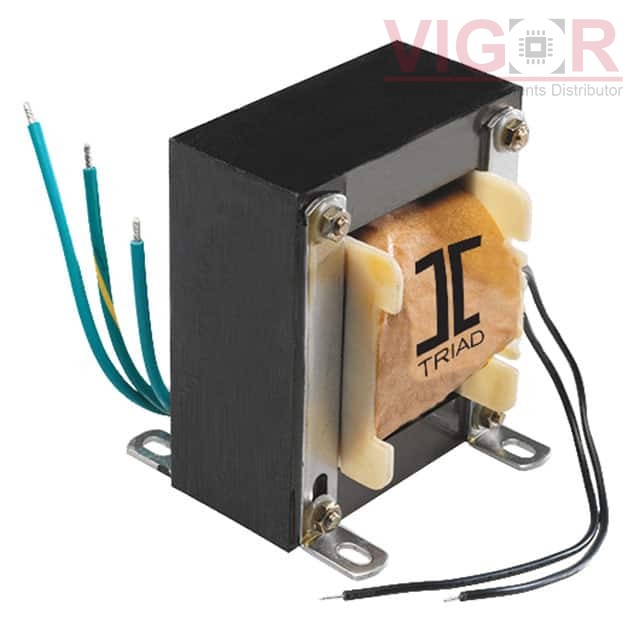

Image is for reference,
please contact us to get the real picture

Part No :

F-243U

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 144VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
F-243U PDF
Availability
40 pieces
Unit Price
$34.73000

Current price of F-243U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F-243U Specifications
Type Description
Series:Multiple Secondary
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 18V, Series 36V
Current - Output (Max):Parallel 8A, Series 4A
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:Yes
Power - Max:144VA
Mounting Type:Chassis Mount
Termination Style:Solder, Quick Connect
Size / Dimension:104.78mm L x 82.55mm W
Height - Seated (Max):88.90mm
Voltage - Isolation:1500Vrms
Weight:5.2 lbs (2.4 kg)
