F-196U

F-196U

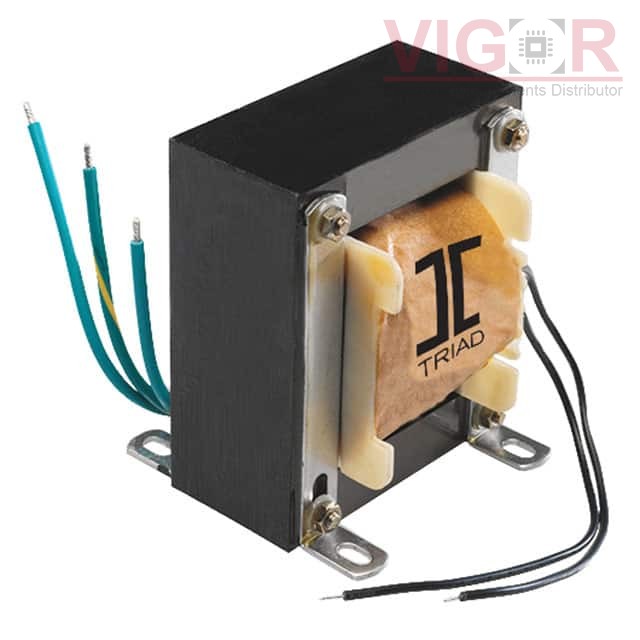

Image is for reference,
please contact us to get the real picture

Part No :

F-196U

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 63VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
F-196U PDF
Availability
355 pieces
Unit Price
$29.44000

Current price of F-196U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

F-196U Specifications
Type Description
Series:Multiple Secondary
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 15.5V, Series 32V
Current - Output (Max):Parallel 2A, Series 1A
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:Yes
Power - Max:63VA
Mounting Type:Chassis Mount
Termination Style:Wire Leads
Size / Dimension:71.42mm L x 66.68mm W
Height - Seated (Max):85.73mm
Voltage - Isolation:1500Vrms
Weight:4 lbs (1.8 kg)
