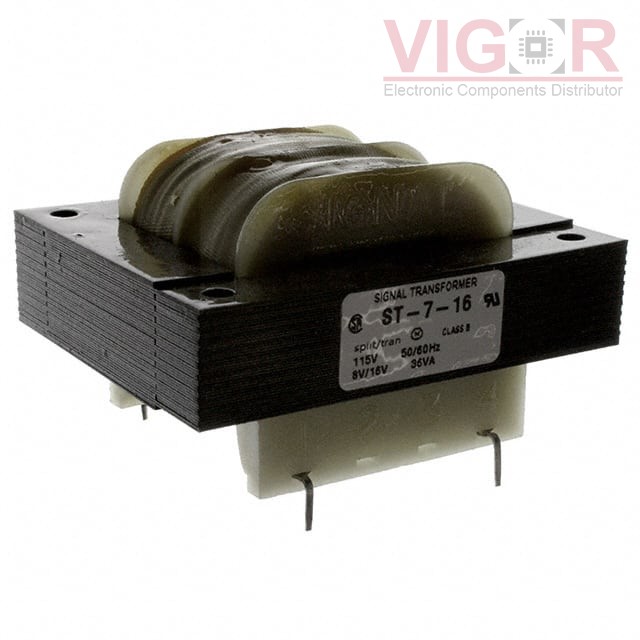

ST-7-16

ST-7-16

Image is for reference,
please contact us to get the real picture

Part No :

ST-7-16

Manufacturer
Signal Transformer
Description
PWR XFMR LAMINATED 36VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
ST-7-16 PDF
Availability
0 pieces
Unit Price
$12.05750

Current price of ST-7-16 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ST-7-16 Specifications
Type Description
Series:ST
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 8V, Series 16V
Current - Output (Max):Parallel 4.5A, Series 2.25A
Primary Winding(s):Single
Secondary Winding(s):Dual
Center Tap:No
Power - Max:36VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:66.70mm L x 55.50mm W
Height - Seated (Max):40.40mm
Voltage - Isolation:2500Vrms
Weight:1.1 lbs (499 g)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1182M18

1182M18

PWR XFMR TORO 120VA CHAS MT
HOT 260A6

260A6

PWR XFMR CHAS MT

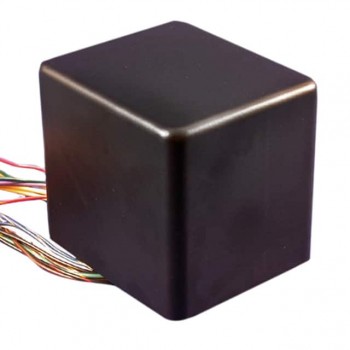

HOT 374BXP
