VPP36-560

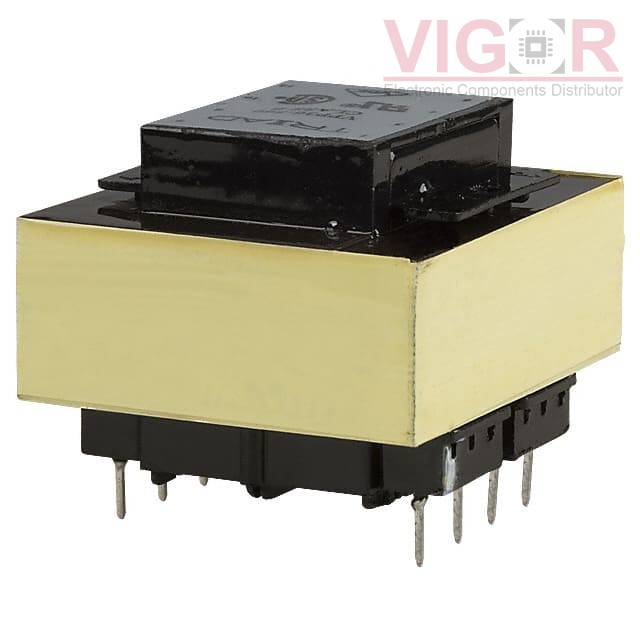

Image is for reference,
please contact us to get the real picture

Part No :: VPP36-560

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 20VA TH

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: VPP36-560 PDF

Availability: 3308395 pieces

Unit Price: ~~$12.36000~~

Current price of VPP36-560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VPP36-560 Specifications

Type	Description
Series:	PC Mount: World Series™
Package:	Box
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 18V, Series 36V
Current - Output (Max):	Parallel 1.12A, Series 560mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	20VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	57.15mm L x 47.63mm W
Height - Seated (Max):	41.28mm
Voltage - Isolation:	4000Vrms
Weight:	0.9 lb (408.23 g)

Please confirm the specifications of the products when ordering.
