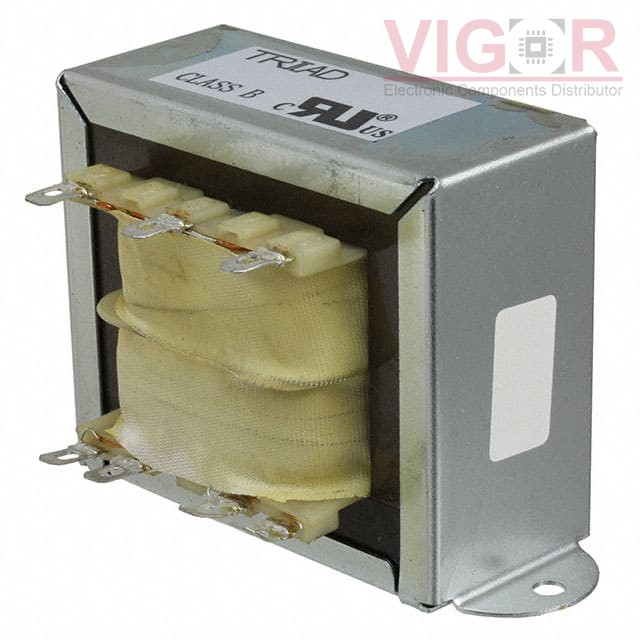

FD8-56

FD8-56

Image is for reference,
please contact us to get the real picture

Part No :

FD8-56

Manufacturer
Triad Magnetics
Description
PWR XFMR LAMINATED 100VA CHAS MT
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
FD8-56 PDF
Availability
412 pieces
Unit Price
$21.06000

Current price of FD8-56 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FD8-56 Specifications
Type Description
Series:Quick Pack
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V, 230V
Voltage - Secondary (Full Load):56V
Current - Output (Max):1.8A
Primary Winding(s):Dual
Secondary Winding(s):Single
Center Tap:Yes
Power - Max:100VA
Mounting Type:Chassis Mount
Termination Style:Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension:102.39mm L x 57.15mm W
Height - Seated (Max):65.07mm
Voltage - Isolation:2500VAC
Weight:2.8 lbs (1.3 kg)
