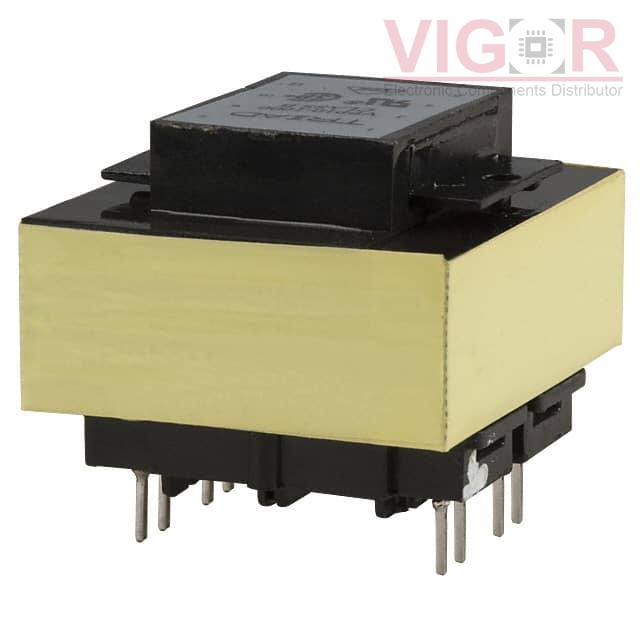

VPP20-500-B

Image is for reference,
please contact us to get the real picture

Part No :: VPP20-500-B

Manufacturer: Triad Magnetics

Description: PWR XFMR LAMINATED 10VA TH

Catalog: Power Transformers

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: VPP20-500-B PDF

Availability: 0 pieces

Unit Price: ~~$5.95200~~

Current price of VPP20-500-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VPP20-500-B Specifications

Type	Description
Series:	PC Mount: World Series™
Package:	Bulk
Part Status:	Active
Type:	Laminated Core
Voltage - Primary:	115V, 230V
Voltage - Secondary (Full Load):	Parallel 10V, Series 20V
Current - Output (Max):	Parallel 1A, Series 500mA
Primary Winding(s):	Dual
Secondary Winding(s):	Dual
Center Tap:	No
Power - Max:	10VA
Mounting Type:	Through Hole
Termination Style:	PC Pin
Size / Dimension:	47.63mm L x 39.67mm W
Height - Seated (Max):	34.93mm
Voltage - Isolation:	4000Vrms
Weight:	0.53 lb (240.4 g)

Please confirm the specifications of the products when ordering.
