IL-10-0002

IL-10-0002

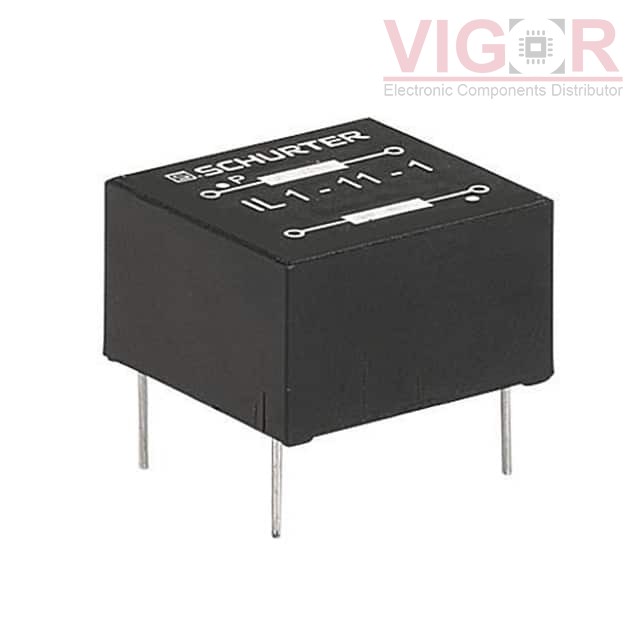

Image is for reference,
please contact us to get the real picture

Part No :

IL-10-0002

Manufacturer
Schurter
Description
IL7 PULSE TRANSFORMER THT SPEZ
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
IL-10-0002 PDF
Availability
0 pieces
Unit Price
$3.48000

Current price of IL-10-0002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IL-10-0002 Specifications
Type Description
Series:IL
Package:Bulk
Part Status:Active
Transformer Type:SCR and Triac Trigger (Encapsulated)
Inductance:16.5mH
ET (Volt-Time):200VµS
Turns Ratio - Primary:Secondary:3:1:1
Mounting Type:Through Hole
Size / Dimension:0.689" L x 0.728" W (17.50mm x 18.50mm)
Height - Seated (Max):0.453" (11.50mm)
Operating Temperature:-25°C ~ 70°C
