MGDT100100LF

MGDT100100LF

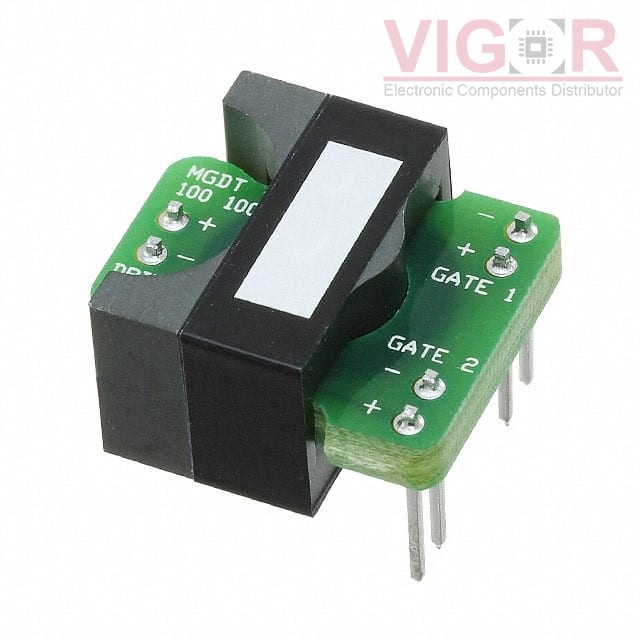

Image is for reference,
please contact us to get the real picture

Part No :

MGDT100100LF

Manufacturer
Vishay / Dale
Description
PLANAR GATE-DRIVE XFMR, 1 : 1 :
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
MGDT100100LF PDF
Availability
121 pieces
Unit Price
$12.32000

Current price of MGDT100100LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MGDT100100LF Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Transformer Type:Gate Drive
Inductance:240µH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:1:1:1
Mounting Type:Through Hole
Size / Dimension:0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max):0.450" (11.43mm)
Operating Temperature:-55°C ~ 125°C
