G504

G504

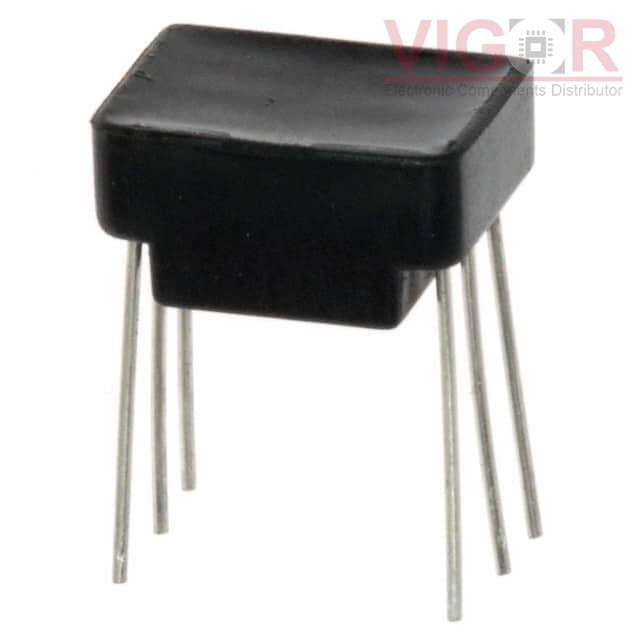

Image is for reference,
please contact us to get the real picture

Part No :

G504

Manufacturer
Tamura
Description
TRANSFORMER 0.05MH 1:1:1 PULSE
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
G504 PDF
Availability
0 pieces
Unit Price
$6.60251

Current price of G504 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G504 Specifications
Type Description
Series:G5
Package:Bulk
Part Status:Active
Transformer Type:Isolation and Data Interface (Encapsulated)
Inductance:50µH
ET (Volt-Time):5.2VµS
Turns Ratio - Primary:Secondary:1:1:1 Ter
Mounting Type:Through Hole
Size / Dimension:0.350" L x 0.500" W (8.90mm x 12.70mm)
Height - Seated (Max):0.250" (6.35mm)
Operating Temperature:0°C ~ 70°C
