X-1569

X-1569

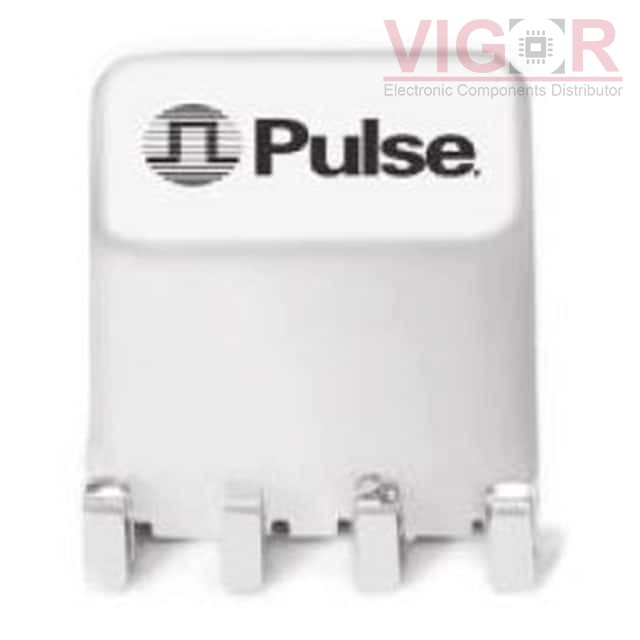

Image is for reference,
please contact us to get the real picture

Part No :

X-1569

Manufacturer
PulseR (iNRCORE
Description
XFMR GATE DRIVE 1500VDC ISO
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
X-1569 PDF
Availability
615 pieces
Unit Price
$10.01000

Current price of X-1569 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

X-1569 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Transformer Type:Gate Drive
Inductance:3.3mH
ET (Volt-Time):45.1VµS
Turns Ratio - Primary:Secondary:1:1:1
Mounting Type:Surface Mount
Size / Dimension:0.355" L x 0.340" W (9.01mm x 8.63mm)
Height - Seated (Max):0.300" (7.62mm)
Operating Temperature:-40°C ~ 130°C
