760301104

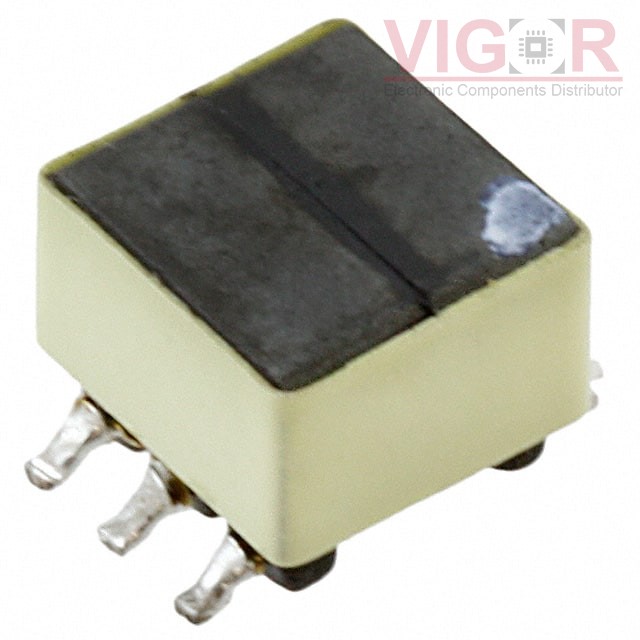

Image is for reference,
please contact us to get the real picture

Part No :

760301104

Manufacturer
Würth Elektronik Midcom
Description
XFRMR GATE DRIVE 2:1:1 SMD
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
760301104 PDF
Availability
103 pieces
Unit Price
$8.14000

Current price of 760301104 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:WE-GDT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transformer Type:Gate Drive
Inductance:330µH
ET (Volt-Time):28.6VµS
Turns Ratio - Primary:Secondary:2:1:1
Mounting Type:Surface Mount
Size / Dimension:0.276" L x 0.335" W (7.00mm x 8.50mm)
Height - Seated (Max):0.236" (6.00mm)
Operating Temperature:-40°C ~ 125°C
