23Z91SMNL

23Z91SMNL

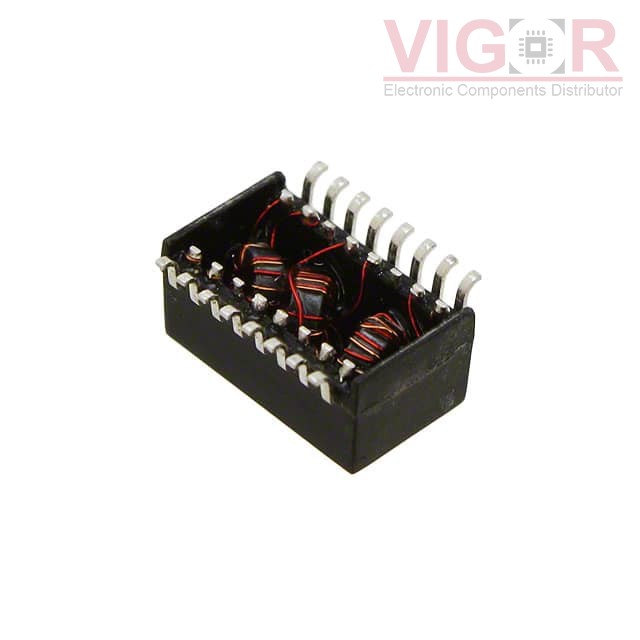

Image is for reference,
please contact us to get the real picture

Part No :

23Z91SMNL

Manufacturer
PulseLarsen Antenna
Description
XFRMR AUI ETHERNET LAN 16SOIC
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
23Z91SMNL PDF
Availability
0 pieces
Unit Price
$2.49600

Current price of 23Z91SMNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

23Z91SMNL Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Transformer Type:Isolation and Data Interface (Encapsulated)
Inductance:100µH
ET (Volt-Time):2.4VµS
Turns Ratio - Primary:Secondary:1:1
Mounting Type:Surface Mount
Size / Dimension:0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max):0.215" (5.46mm)
Operating Temperature:0°C ~ 70°C
