760301107

760301107

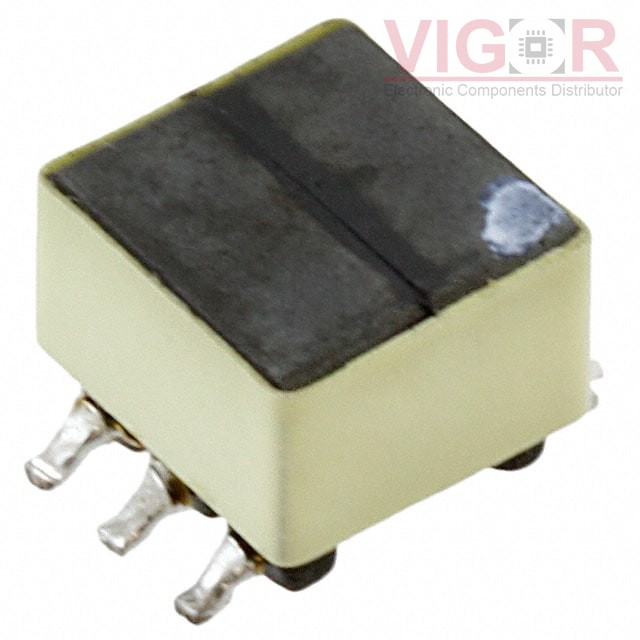

Image is for reference,
please contact us to get the real picture

Part No :

760301107

Manufacturer
Würth Elektronik Midcom
Description
XFRMR GATE DRIVE 1.5:1 SMD
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
760301107 PDF
Availability
799 pieces
Unit Price
$8.14000

Current price of 760301107 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760301107 Specifications
Type Description
Series:WE-GDT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transformer Type:Gate Drive
Inductance:650µH
ET (Volt-Time):40.8VµS
Turns Ratio - Primary:Secondary:1.5:1
Mounting Type:Surface Mount
Size / Dimension:0.276" L x 0.335" W (7.00mm x 8.50mm)
Height - Seated (Max):0.236" (6.00mm)
Operating Temperature:-40°C ~ 125°C
