SM91508AL-E

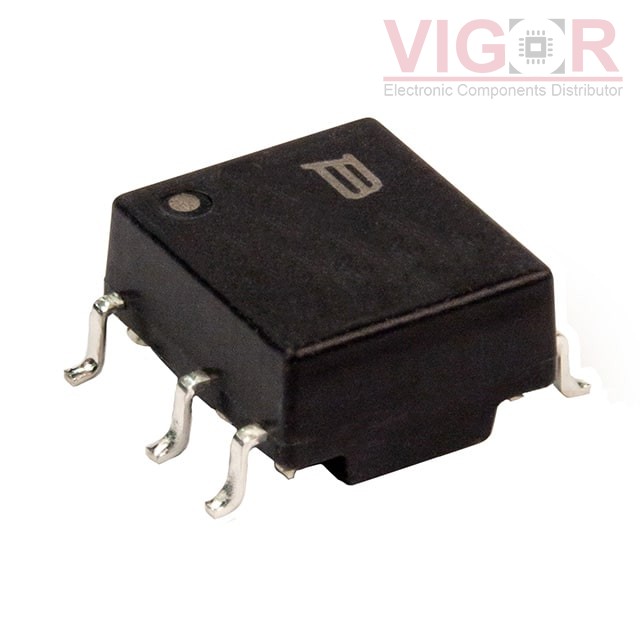

Image is for reference,
please contact us to get the real picture

Part No :: SM91508AL-E

Manufacturer: J.W. Miller / Bourns

Description: XFRMR PULSE 1:1 300UH SMD

Catalog: Pulse Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: SM91508AL-E PDF

Availability: 706 pieces

Unit Price: ~~$3.19000~~

Current price of SM91508AL-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SM91508AL-E Specifications

Type	Description
Series:	Automotive, AEC-Q200, SM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Transformer Type:	-
Inductance:	300µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1:1
Mounting Type:	Surface Mount
Size / Dimension:	0.330" L x 0.303" W (8.38mm x 7.69mm)
Height - Seated (Max):	0.167" (4.25mm)
Operating Temperature:	-40°C ~ 150°C
