BX1194WNLT

BX1194WNLT

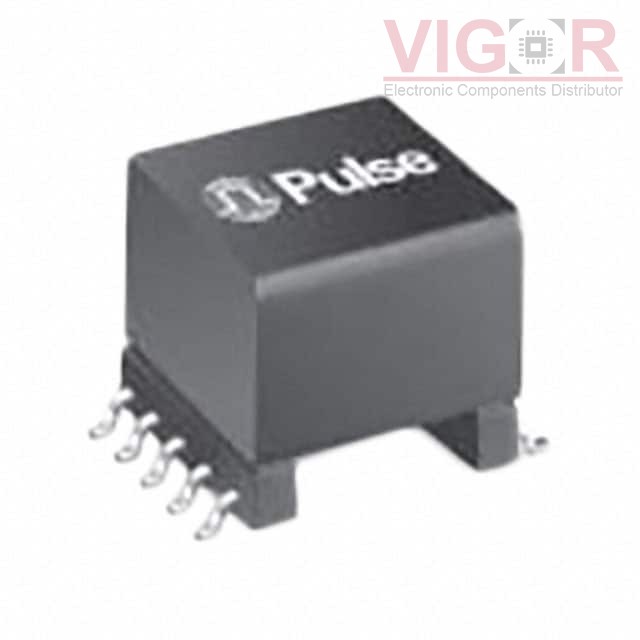

Image is for reference,
please contact us to get the real picture

Part No :

BX1194WNLT

Manufacturer
PulseLarsen Antenna
Description
XFRMR SHDSL FOR INFINEON CHIPSET
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
BX1194WNLT PDF
Availability
2967 pieces
Unit Price
$4.41000

Current price of BX1194WNLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BX1194WNLT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transformer Type:SHDSL
Inductance:3mH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:4.5:1
Mounting Type:Surface Mount
Size / Dimension:0.530" L x 0.555" W (13.46mm x 14.10mm)
Height - Seated (Max):0.485" (12.32mm)
Operating Temperature:-40°C ~ 85°C
