78602/9JC

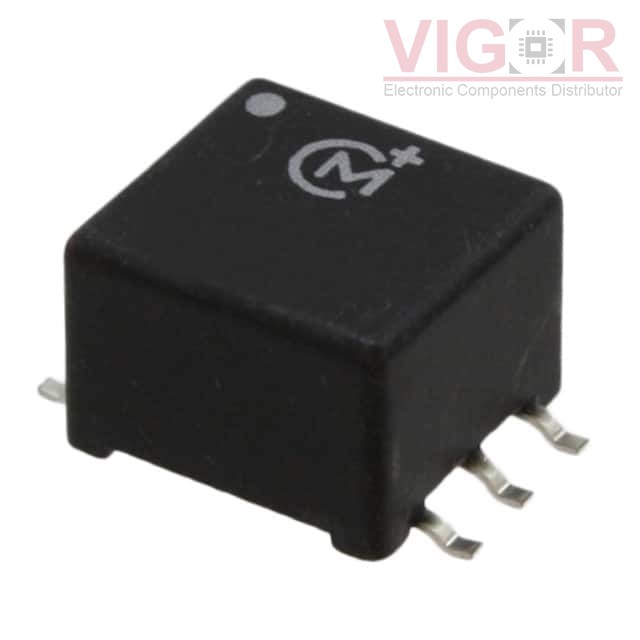

Image is for reference,
please contact us to get the real picture

Part No :: 78602/9JC

Manufacturer: Murata Power Solutions

Description: XFRMR 1:1:1 56VUS SMD TOROID

Catalog: Pulse Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 78602/9JC PDF

Availability: 9708 pieces

Unit Price: ~~$1.57000~~

Current price of 78602/9JC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

78602/9JC Specifications

Type	Description
Series:	786
Package:	Tube
Part Status:	Active
Transformer Type:	General Purpose
Inductance:	10mH
ET (Volt-Time):	56VµS
Turns Ratio - Primary:Secondary:	1:1:1
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.375" W (9.00mm x 9.52mm)
Height - Seated (Max):	0.250" (6.35mm)
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
