MGDT100125LF

MGDT100125LF

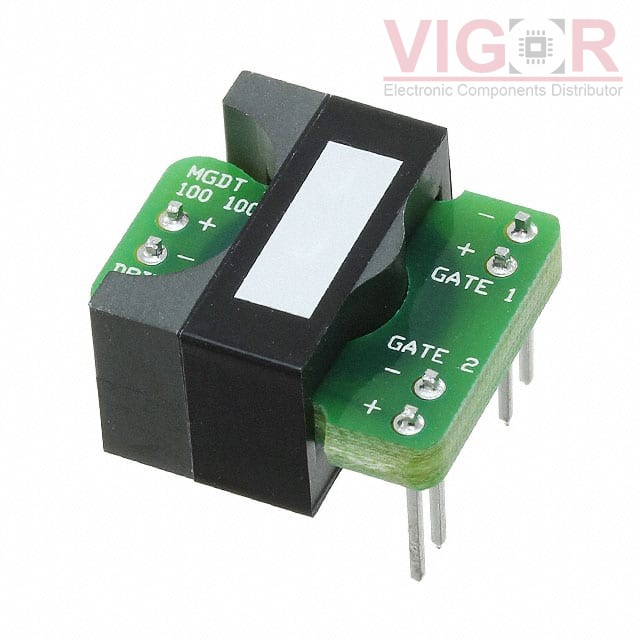

Image is for reference,
please contact us to get the real picture

Part No :

MGDT100125LF

Manufacturer
Vishay / Dale
Description
PLANAR GATE-DRIVE XFMR, 1 : 1.25
Catalog
Pulse Transformers
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
MGDT100125LF PDF
Availability
60 pieces
Unit Price
$12.39000

Current price of MGDT100125LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MGDT100125LF Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Transformer Type:Gate Drive
Inductance:240µH
ET (Volt-Time):-
Turns Ratio - Primary:Secondary:1:1.25:1.25
Mounting Type:Through Hole
Size / Dimension:0.810" L x 0.725" W (20.57mm x 18.42mm)
Height - Seated (Max):0.450" (11.43mm)
Operating Temperature:-55°C ~ 125°C
