23Z356SMQNL

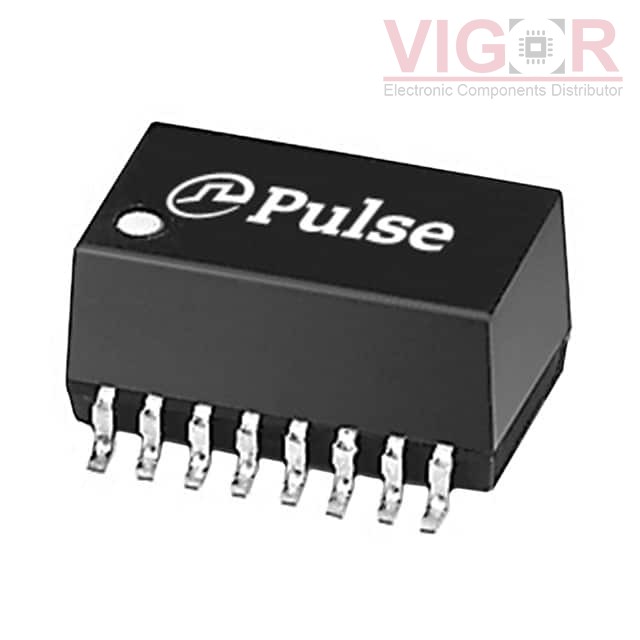

Image is for reference,
please contact us to get the real picture

Part No :: 23Z356SMQNL

Manufacturer: PulseLarsen Antenna

Description: TRANSFORMER 10BASE-T LAN 16SOIC

Catalog: Pulse Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: 23Z356SMQNL PDF

Availability: 0 pieces

Unit Price: ~~$2.62400~~

Current price of 23Z356SMQNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

23Z356SMQNL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Transformer Type:	Isolation and Data Interface (Encapsulated)
Inductance:	200µH
ET (Volt-Time):	-
Turns Ratio - Primary:Secondary:	1CT:1.414CT Transmitter, 1CT:1CT Receiver
Mounting Type:	Surface Mount
Size / Dimension:	0.450" L x 0.265" W (11.43mm x 6.73mm)
Height - Seated (Max):	0.215" (5.46mm)
Operating Temperature:	0°C ~ 70°C

Please confirm the specifications of the products when ordering.
