750343109

750343109

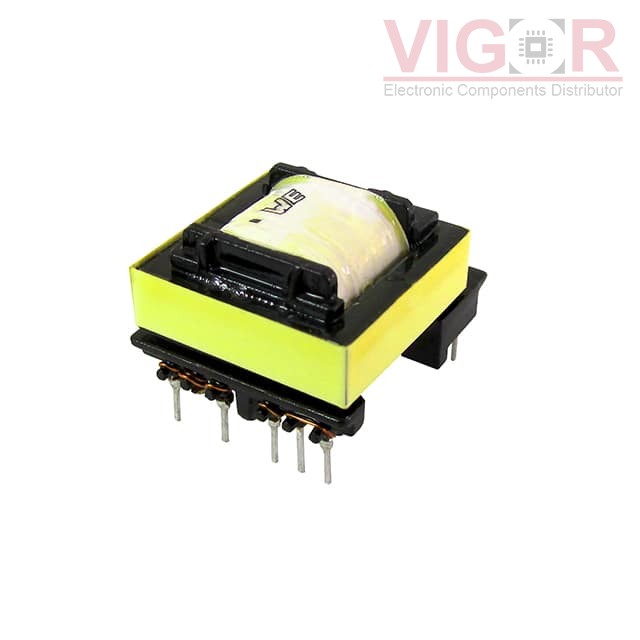

Image is for reference,
please contact us to get the real picture

Part No :

750343109

Manufacturer
Würth Elektronik Midcom
Description
XFRMER FLYBACK AC/DC CONV TH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750343109 PDF
Availability
75 pieces
Unit Price
$7.56000

Current price of 750343109 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750343109 Specifications
Type Description
Series:WE-FB, MID-OLDIA
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:Dialog Semiconductor
Voltage - Primary:90 ~ 264V
Voltage - Auxiliary:14V
Voltage - Isolation:3000Vrms
Inductance @ Frequency:490µH @ 10kHz
Frequency:70kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.874" L x 1.024" W (22.20mm x 26.00mm)
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.874" L x 1.024" W (22.20mm x 26.00mm)
Style:-
