B82805A0952A250

B82805A0952A250

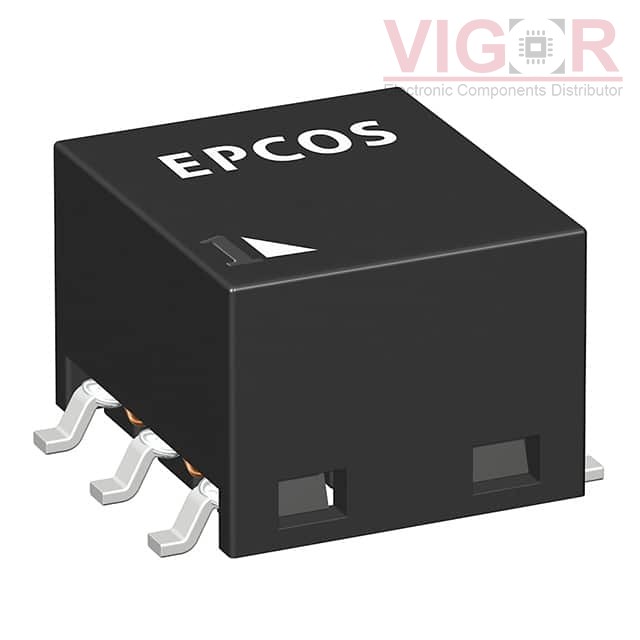

Image is for reference,
please contact us to get the real picture

Part No :

B82805A0952A250

Manufacturer
TDK EPCOS
Description
P100724 E6.3 SMT PUSH-PULL TRANS
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
B82805A0952A250 PDF
Availability
0 pieces
Unit Price
$3.41550

Current price of B82805A0952A250 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82805A0952A250 Specifications
Type Description
Series:B82805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Forward, Push-Pull Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:500VAC
Inductance @ Frequency:9.5µH @ 50kHz
Frequency:250kHz
Operating Temperature:-25°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.315" L x 0.236" W (8.00mm x 6.00mm)
Height - Seated (Max):0.224" (5.70mm)
Footprint:0.315" L x 0.378" W (8.00mm x 9.60mm)
Style:-
