750341137

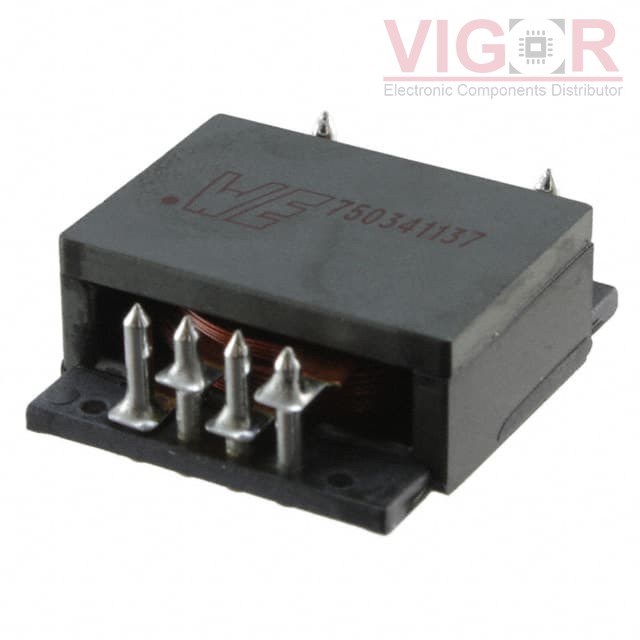

Image is for reference,
please contact us to get the real picture

Part No :: 750341137

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER PLANAR 480UH SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: 750341137 PDF

Availability: 0 pieces

Unit Price: ~~$19.16400~~

Current price of 750341137 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750341137 Specifications

Type	Description
Series:	WE-FW, MID-PLN
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500VDC
Inductance @ Frequency:	480µH @ 100kHz
Frequency:	200 ~ 700kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	1.050" L x 1.154" W (26.67mm x 29.30mm)
Height - Seated (Max):	0.418" (10.62mm)
Footprint:	1.050" L x 1.154" W (26.67mm x 29.30mm)
Style:	Planar
