750811042

750811042

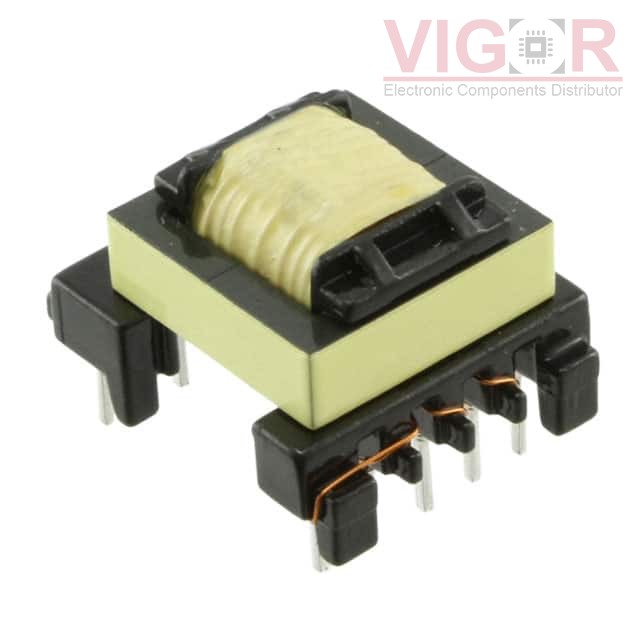

Image is for reference,
please contact us to get the real picture

Part No :

750811042

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK ON SEMI NCP1014
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750811042 PDF
Availability
0 pieces
Unit Price
$10.95100

Current price of 750811042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750811042 Specifications
Type Description
Series:WE-UNIT, MID-OLON
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:NCP1014
Chipset Manufacturer:On Semiconductor
Voltage - Primary:120 ~ 375V
Voltage - Auxiliary:-
Voltage - Isolation:4500Vrms
Inductance @ Frequency:1.8mH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:-
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.800" L x 0.960" W (20.32mm x 24.38mm)
Style:-
