PA5100.006NLT

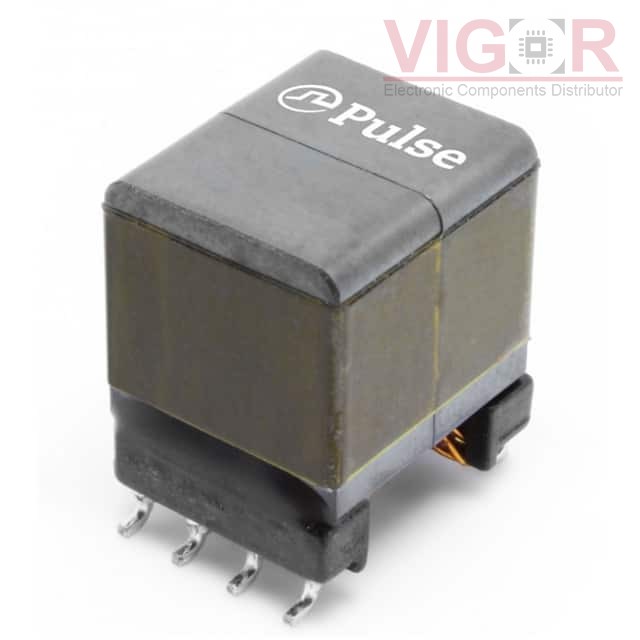

Image is for reference,
please contact us to get the real picture

Part No :: PA5100.006NLT

Manufacturer: PulseLarsen Antenna

Description: TRANSFORMER, FORWARD, EP7 PLUS,

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: PA5100.006NLT PDF

Availability: 0 pieces

Unit Price: ~~$3.34000~~

Current price of PA5100.006NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5100.006NLT Specifications

Type	Description
Series:	PA5100XXXNL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Forward, Push-Pull Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	9 ~ 57V
Voltage - Auxiliary:	-
Voltage - Isolation:	2250V
Inductance @ Frequency:	-
Frequency:	200kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.535" L x 0.433" W (13.60mm x 11.00mm)
Height - Seated (Max):	0.610" (15.50mm)
Footprint:	0.535" L x 0.433" W (13.60mm x 11.00mm)
Style:	Wirewound
