750813144

750813144

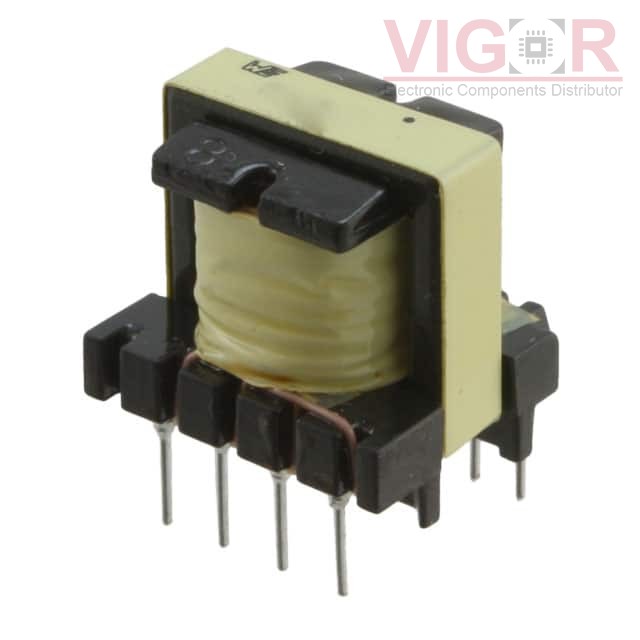

Image is for reference,
please contact us to get the real picture

Part No :

750813144

Manufacturer
Würth Elektronik Midcom
Description
TRANS OFFLINE600UH LT3799 LT4180
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
750813144 PDF
Availability
490 pieces
Unit Price
$10.65000

Current price of 750813144 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750813144 Specifications
Type Description
Series:WE-FB, MID-OLLT
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:LT3799, LT4180
Chipset Manufacturer:Linear Technology
Voltage - Primary:85 ~ 265V
Voltage - Auxiliary:20V @ 10mA
Voltage - Isolation:4500Vrms
Inductance @ Frequency:600µH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.728" L x 0.650" W (18.50mm x 16.50mm)
Height - Seated (Max):0.740" (18.80mm)
Footprint:0.728" L x 0.650" W (18.50mm x 16.50mm)
Style:-
