B78307A2385A003

B78307A2385A003

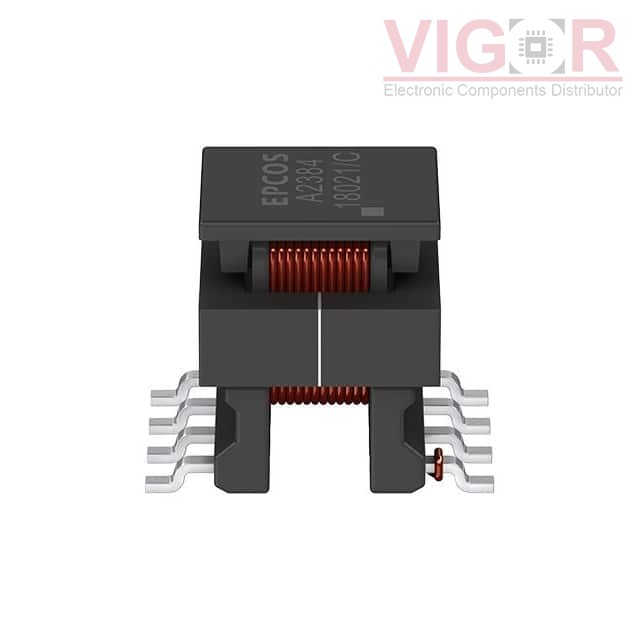

Image is for reference,
please contact us to get the real picture

Part No :

B78307A2385A003

Manufacturer
TDK EPCOS
Description
AUXILIRY TRANSFORMER E10 SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B78307A2385A003 PDF
Availability
279 pieces
Unit Price
$6.68000

Current price of B78307A2385A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78307A2385A003 Specifications
Type Description
Series:Automotive, AEC-Q200, ATEM E10
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:-
Inductance @ Frequency:10µH @ 100kHz
Frequency:100 ~ 500kHz
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Size / Dimension:0.461" L x 0.367" W (11.70mm x 9.33mm)
Height - Seated (Max):0.447" (11.35mm)
Footprint:0.518" L x 0.461" W (13.15mm x 11.70mm)
Style:-
