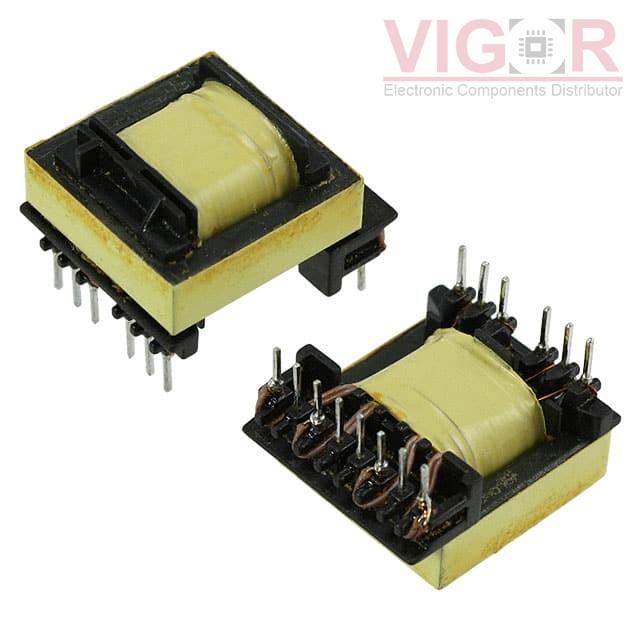

750841630

750841630

Image is for reference,
please contact us to get the real picture

Part No :

750841630

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK NXP UM10369 1.6MH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
750841630 PDF
Availability
0 pieces
Unit Price
$6.27200

Current price of 750841630 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750841630 Specifications
Type Description
Series:WE-UNIT, MID-OLNXP
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:TEA1522
Chipset Manufacturer:NXP Semiconductors
Voltage - Primary:125 ~ 375V
Voltage - Auxiliary:12V @ 100mA
Voltage - Isolation:4000Vrms
Inductance @ Frequency:1.6mH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.874" L x 0.984" W (22.20mm x 25.00mm)
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.874" L x 0.984" W (22.20mm x 25.00mm)
Style:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 7491192912

7491192912

WE-POE POWER OVER ETHERNET TRANS

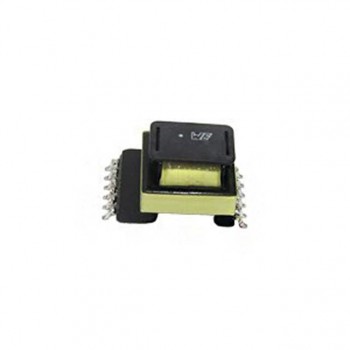

HOT 7508111323

7508111323

OFFLINE TRANSFORMER 12W EE16/8/5

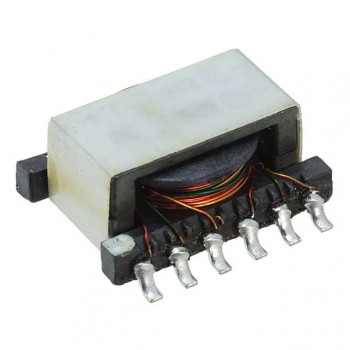

HOT VPH1-0190-R
