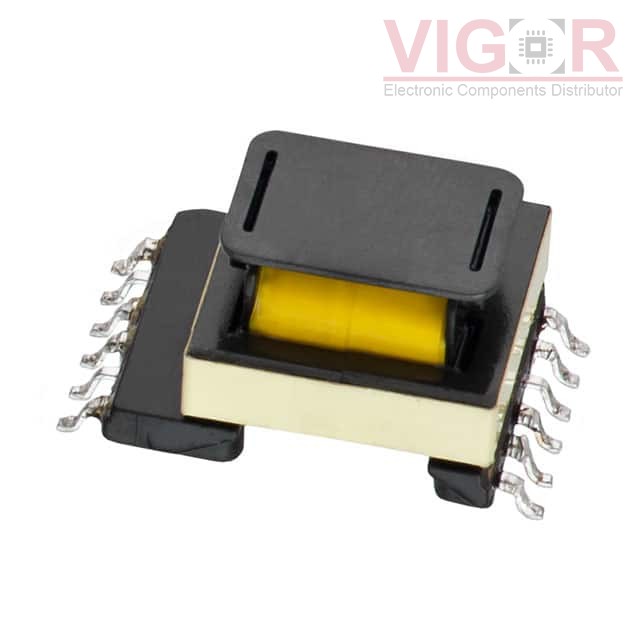

Image is for reference,
please contact us to get the real picture

Part No :

760871534

Manufacturer
Würth Elektronik Midcom
Description
TRANSFORMER OFFLINE 1.25MH 4000V
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
760871534 PDF
Availability
0 pieces
Unit Price
$7.79500

Current price of 760871534 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760871534 Specifications
Type Description
Series:WE-UOST
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:85 ~ 265V
Voltage - Auxiliary:14V
Voltage - Isolation:4000Vrms
Inductance @ Frequency:1.25mH @ 100kHz
Frequency:60 ~ 150kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.654" L x 0.790" W (16.60mm x 20.06mm)
Height - Seated (Max):0.551" (14.00mm)
Footprint:0.654" L x 1.016" W (16.60mm x 25.81mm)
Style:-
