750311783

750311783

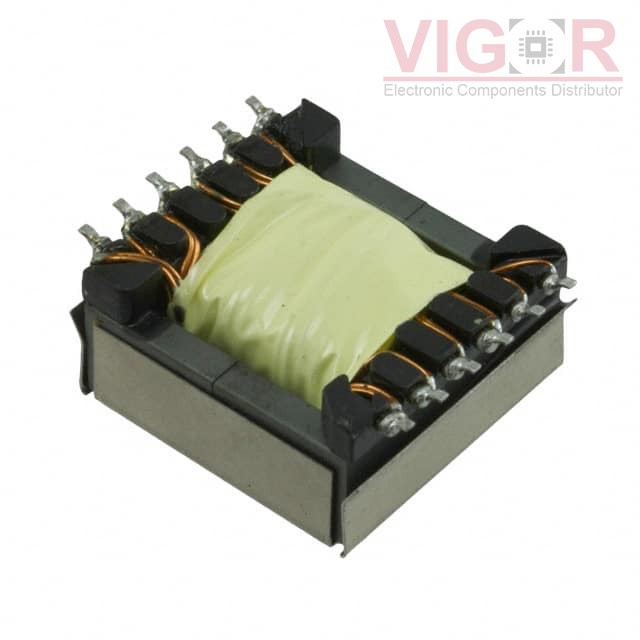

Image is for reference,
please contact us to get the real picture

Part No :

750311783

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK LT3748 20UH SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
750311783 PDF
Availability
2661 pieces
Unit Price
$13.48000

Current price of 750311783 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750311783 Specifications
Type Description
Series:WE-FB
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer:Linear Technology
Voltage - Primary:19 ~ 70V
Voltage - Auxiliary:12V @ 10mA
Voltage - Isolation:1500Vrms
Inductance @ Frequency:20µH @ 150kHz
Frequency:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.544" (13.82mm)
Footprint:1.064" L x 1.272" W (27.03mm x 32.31mm)
Style:-
