750811290

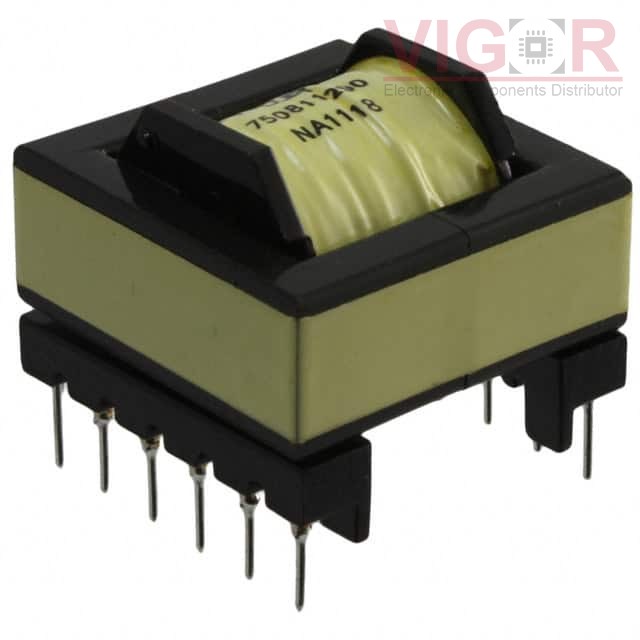

Image is for reference,
please contact us to get the real picture

Part No :: 750811290

Manufacturer: Würth Elektronik Midcom

Description: TRANSFORMER FLYBACK LT3799

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: 750811290 PDF

Availability: 36 pieces

Unit Price: ~~$16.94000~~

Current price of 750811290 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750811290 Specifications

Type	Description
Series:	WE-FB, MID-OLLT
Package:	Tray
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LT3799
Chipset Manufacturer:	Linear Technology
Voltage - Primary:	85 ~ 265V
Voltage - Auxiliary:	-
Voltage - Isolation:	4500Vrms
Inductance @ Frequency:	461µH @ 10kHz
Frequency:	150kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Size / Dimension:	1.220" L x 1.220" W (31.00mm x 31.00mm)
Height - Seated (Max):	0.989" (25.12mm)
Footprint:	1.220" L x 1.220" W (31.00mm x 31.00mm)
Style:	-

Please confirm the specifications of the products when ordering.
