750312504

750312504

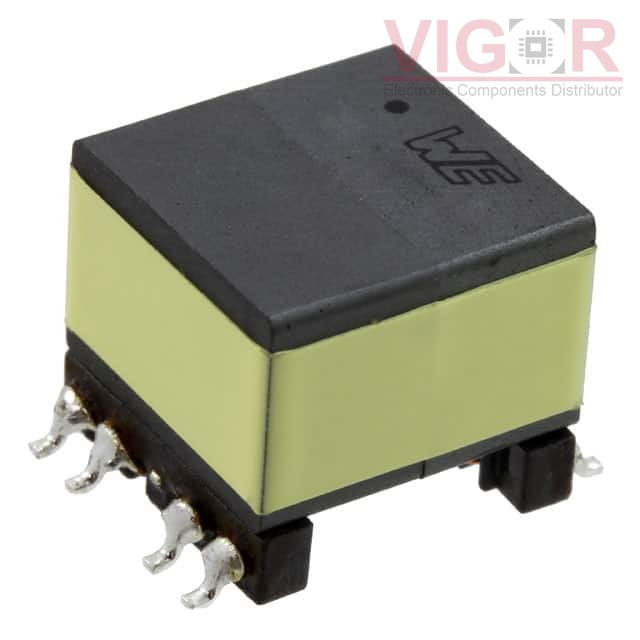

Image is for reference,
please contact us to get the real picture

Part No :

750312504

Manufacturer
Würth Elektronik Midcom
Description
FLYBACK XFRM WE-FB LTC3300
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
750312504 PDF
Availability
2924 pieces
Unit Price
$5.62000

Current price of 750312504 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750312504 Specifications
Type Description
Series:WE-FB, MID-FLYLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Capacitor Charger
Intended Chipset:LTC3300-1, LTC6804-2, LTC3300ILXE-1, LTC6803IG-2
Chipset Manufacturer:Linear Technology
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:500VDC
Inductance @ Frequency:3.46µH @ 100kHz
Frequency:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.505" (12.83mm)
Footprint:0.530" L x 0.699" W (13.46mm x 17.75mm)
Style:-
