750316854

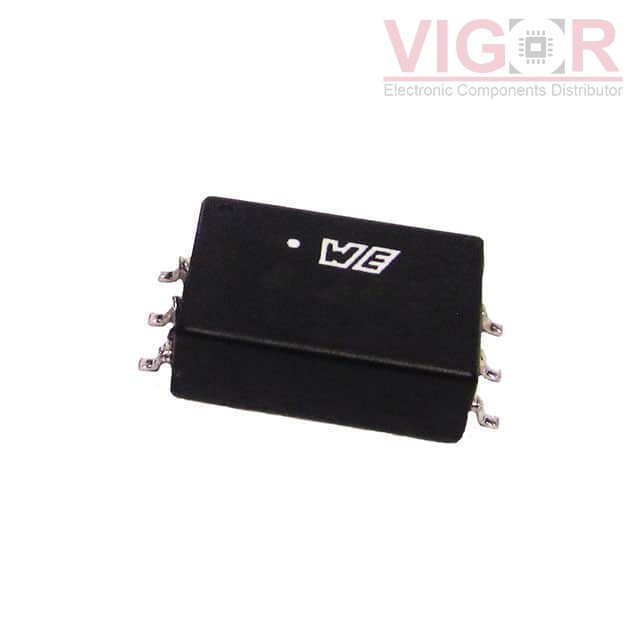

Image is for reference,
please contact us to get the real picture

Part No :

750316854

Manufacturer
Würth Elektronik Midcom
Description
PUSH-PULL TRANSFORMER TOR5.8/3.1
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
750316854 PDF
Availability
566 pieces
Unit Price
$4.21000

Current price of 750316854 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:MID-PPTI
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Forward, Push-Pull Converters
Intended Chipset:-
Chipset Manufacturer:Texas Instruments
Voltage - Primary:5V
Voltage - Auxiliary:-
Voltage - Isolation:2500Vrms
Inductance @ Frequency:200µH @ 10kHz
Frequency:420kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.450" L x 0.327" W (11.43mm x 8.30mm)
Height - Seated (Max):0.165" (4.20mm)
Footprint:0.581" L x 0.327" W (14.75mm x 8.30mm)
Style:-
