13324-T086

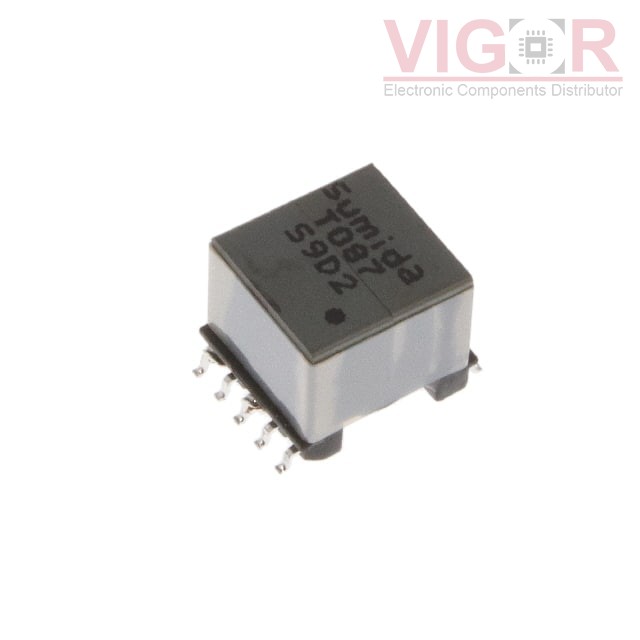

Image is for reference,
please contact us to get the real picture

Part No :

13324-T086

Manufacturer
Sumida Corporation
Description
XFRMR
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
13324-T086 PDF
Availability
0 pieces
Unit Price
$4.67000

Current price of 13324-T086 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Applications:-
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:4 ~ 36V
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:40µH @ 100kHz
Frequency:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.591" L x 0.531" W (15.00mm x 13.50mm)
Height - Seated (Max):0.492" (12.50mm)
Footprint:0.709" L x 0.531" W (18.00mm x 13.50mm)
Style:-
