PA2718NL

PA2718NL

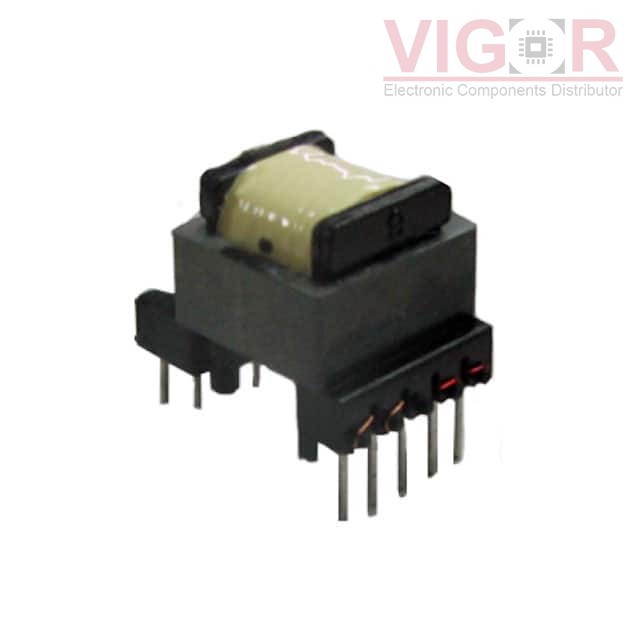

Image is for reference,
please contact us to get the real picture

Part No :

PA2718NL

Manufacturer
PulseLarsen Antenna
Description
XFMR FLYBACK CONV CONFIG T/H
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PA2718NL PDF
Availability
0 pieces
Unit Price
$1.77000

Current price of PA2718NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA2718NL Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:Configurable (For DC/DC)
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:85 ~ 256V
Voltage - Auxiliary:-
Voltage - Isolation:3000Vrms
Inductance @ Frequency:-
Frequency:132kHz
Operating Temperature:-40°C ~ 130°C
Mounting Type:Through Hole
Size / Dimension:0.531" L x 0.768" W (13.50mm x 19.50mm)
Height - Seated (Max):0.591" (15.00mm)
Footprint:0.531" L x 0.768" W (13.50mm x 19.50mm)
Style:-
