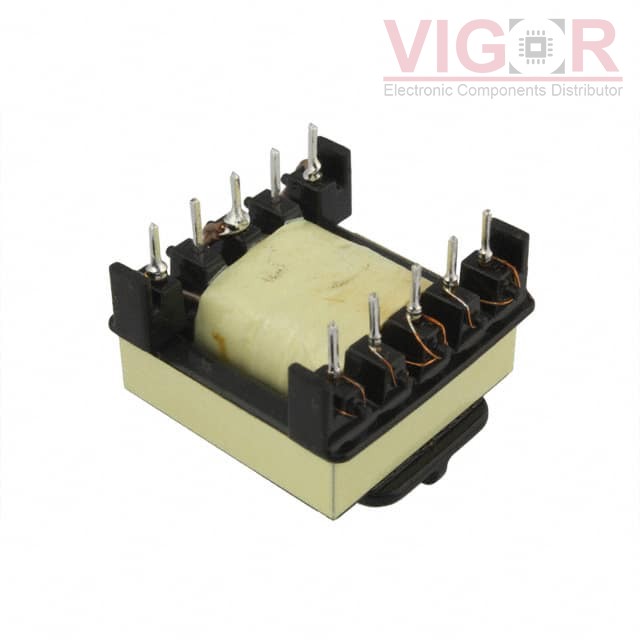

Image is for reference,
please contact us to get the real picture

Part No :

760871631

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK NXP TEA1733 2.2MH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
760871631 PDF
Availability
0 pieces
Unit Price
$9.58196

Current price of 760871631 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760871631 Specifications
Type Description
Series:WE-UNIT
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:TEA1733
Chipset Manufacturer:NXP Semiconductors
Voltage - Primary:120 ~ 385V
Voltage - Auxiliary:12V @ 10mA
Voltage - Isolation:1500Vrms
Inductance @ Frequency:2.2mH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:1.150" L x 1.100" W (29.21mm x 27.94mm)
Height - Seated (Max):0.850" (21.59mm)
Footprint:1.150" L x 1.100" W (29.21mm x 27.94mm)
Style:-
