750817014

750817014

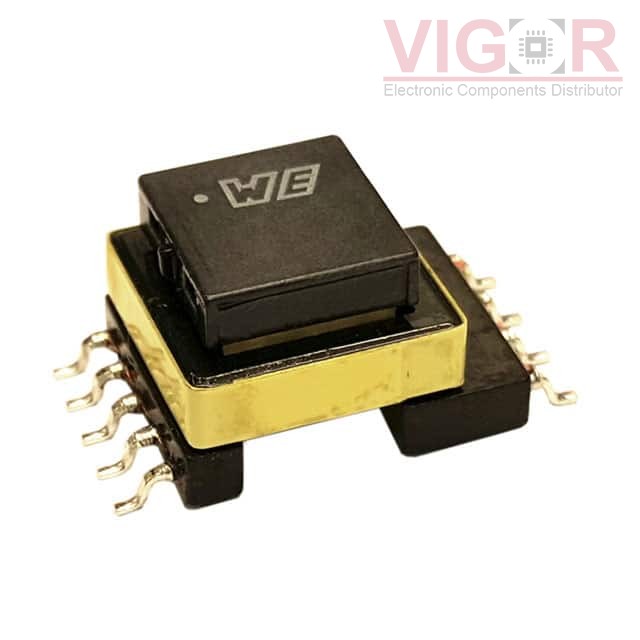

Image is for reference,
please contact us to get the real picture

Part No :

750817014

Manufacturer
Würth Elektronik Midcom
Description
XFRMER FLYBACK AC/DC CONV SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
750817014 PDF
Availability
175 pieces
Unit Price
$4.66000

Current price of 750817014 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750817014 Specifications
Type Description
Series:WE-UNIT, MID-OLEE
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:78 ~ 375V
Voltage - Auxiliary:16V @ 50mA
Voltage - Isolation:3000Vrms
Inductance @ Frequency:1.84mH @ 10kHz
Frequency:50kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.438" (11.13mm)
Footprint:0.543" L x 0.941" W (13.80mm x 23.90mm)
Style:-
