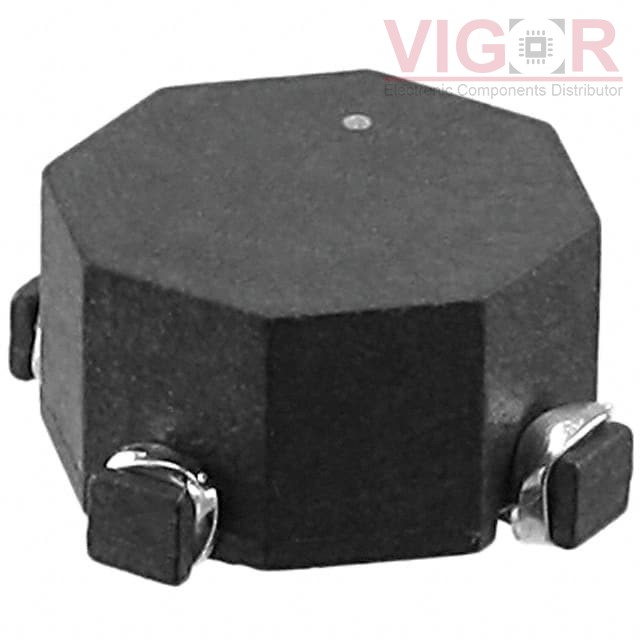

PA0367ANLT

Image is for reference,
please contact us to get the real picture

Part No :: PA0367ANLT

Manufacturer: PulseLarsen Antenna

Description: TRANSFORMER 18UH 1:12 SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: PA0367ANLT PDF

Availability: 3312 pieces

Unit Price: ~~$4.06000~~

Current price of PA0367ANLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA0367ANLT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	LT3420
Chipset Manufacturer:	Linear Technology
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	-
Frequency:	-
Operating Temperature:	-40°C ~ 130°C
Mounting Type:	Surface Mount
Size / Dimension:	0.360" L x 0.360" W (9.14mm x 9.14mm)
Height - Seated (Max):	0.215" (5.45mm)
Footprint:	0.460" L x 0.460" W (11.68mm x 11.68mm)
Style:	-
