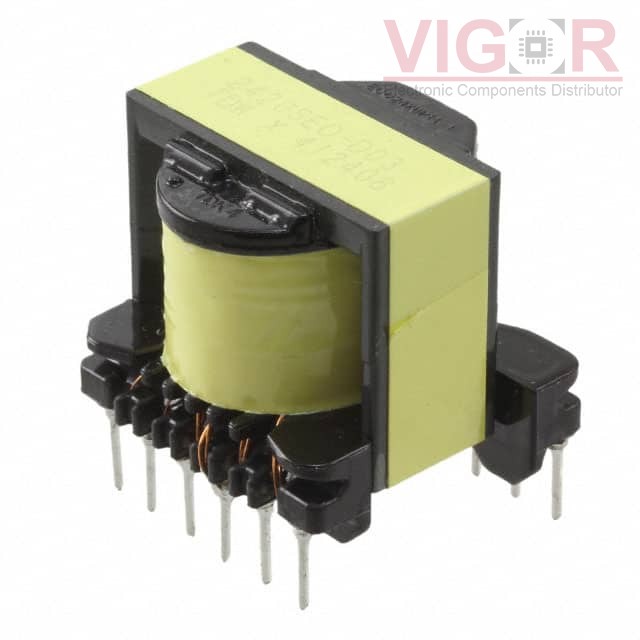

ECO2420SEO-D03V018

Image is for reference,
please contact us to get the real picture

Part No :: ECO2420SEO-D03V018

Manufacturer: TDK Corporation

Description: INDUCTOR/XFRMR

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: ECO2420SEO-D03V018 PDF

Availability: 0 pieces

Unit Price: ~~$6.34125~~

Current price of ECO2420SEO-D03V018 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECO2420SEO-D03V018 Specifications

Type	Description
Series:	ECO
Package:	Bulk
Part Status:	Active
Type:	For AC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	169 ~ 312V
Voltage - Auxiliary:	5V @ 200mA, 12V @ 2.5A
Voltage - Isolation:	3000Vrms
Inductance @ Frequency:	750µH @ 100kHz
Frequency:	60kHz
Operating Temperature:	-30°C ~ 120°C
Mounting Type:	Through Hole
Size / Dimension:	1.240" L x 0.984" W (31.50mm x 25.00mm)
Height - Seated (Max):	1.043" (26.50mm)
Footprint:	1.240" L x 0.984" W (31.50mm x 25.00mm)
Style:	-
