750871630

750871630

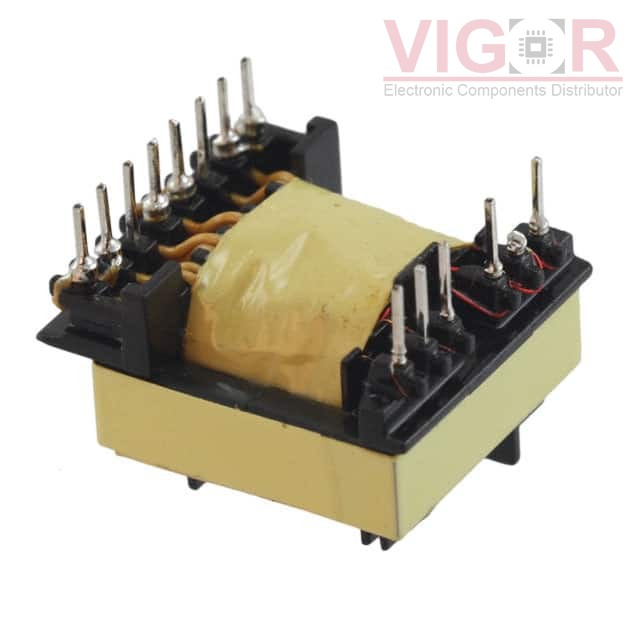

Image is for reference,
please contact us to get the real picture

Part No :

750871630

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK NXP STARPLUG 500UH
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
750871630 PDF
Availability
0 pieces
Unit Price
$6.66400

Current price of 750871630 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750871630 Specifications
Type Description
Series:WE-UNIT, MID-OLNXP
Package:Tray
Part Status:Active
Type:For AC/DC Converters
Applications:LED Drivers, AC/DC SMPS
Intended Chipset:TEA1623PH
Chipset Manufacturer:NXP Semiconductors
Voltage - Primary:120 ~ 385V
Voltage - Auxiliary:12V @ 30mA
Voltage - Isolation:4000Vrms
Inductance @ Frequency:500µH @ 10kHz
Frequency:100kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Size / Dimension:0.827" L x 0.984" W (21.00mm x 25.00mm)
Height - Seated (Max):0.635" (16.13mm)
Footprint:0.827" L x 0.984" W (21.00mm x 25.00mm)
Style:-
