760390015

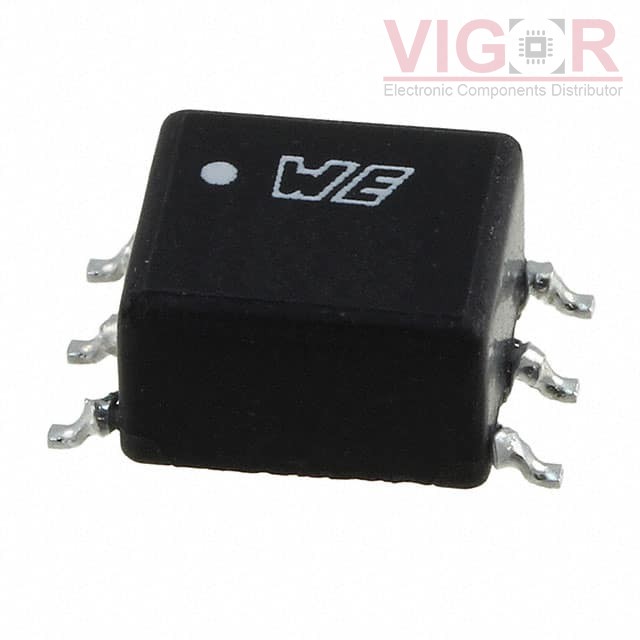

Image is for reference,
please contact us to get the real picture

Part No :

760390015

Manufacturer
Würth Elektronik Midcom
Description
TRANSFORMER 475UH SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
760390015 PDF
Availability
0 pieces
Unit Price
$1.90000

Current price of 760390015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:WE-PP, MID-PPTI
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Forward, Push-Pull Converters
Intended Chipset:SN6501
Chipset Manufacturer:Texas Instruments
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:3125Vrms
Inductance @ Frequency:475µH @ 10kHz
Frequency:10kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Max):0.170" (4.32mm)
Footprint:0.265" L x 0.395" W (6.73mm x 10.05mm)
Style:-
