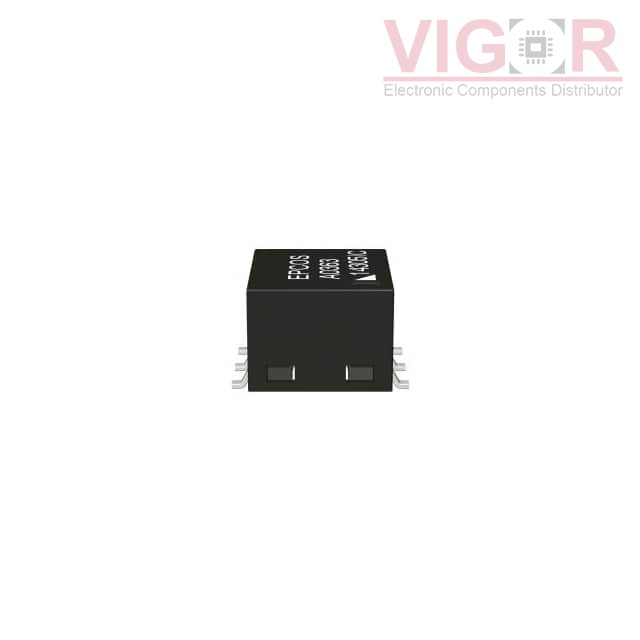

B78304B1016A003

Image is for reference,
please contact us to get the real picture

Part No :: B78304B1016A003

Manufacturer: TDK EPCOS

Description: XFMR DC/DC CONV SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: B78304B1016A003 PDF

Availability: 0 pieces

Unit Price: ~~$3.79500~~

Current price of B78304B1016A003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B78304B1016A003 Specifications

Type	Description
Series:	B78304B
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	-
Intended Chipset:	-
Chipset Manufacturer:	-
Voltage - Primary:	-
Voltage - Auxiliary:	-
Voltage - Isolation:	500Vrms
Inductance @ Frequency:	4.3mH @ 10kHz
Frequency:	-
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Size / Dimension:	0.315" L x 0.276" W (8.00mm x 7.00mm)
Height - Seated (Max):	0.224" (5.70mm)
Footprint:	0.315" L x 0.374" W (8.00mm x 9.50mm)
Style:	-

Please confirm the specifications of the products when ordering.
