750313974

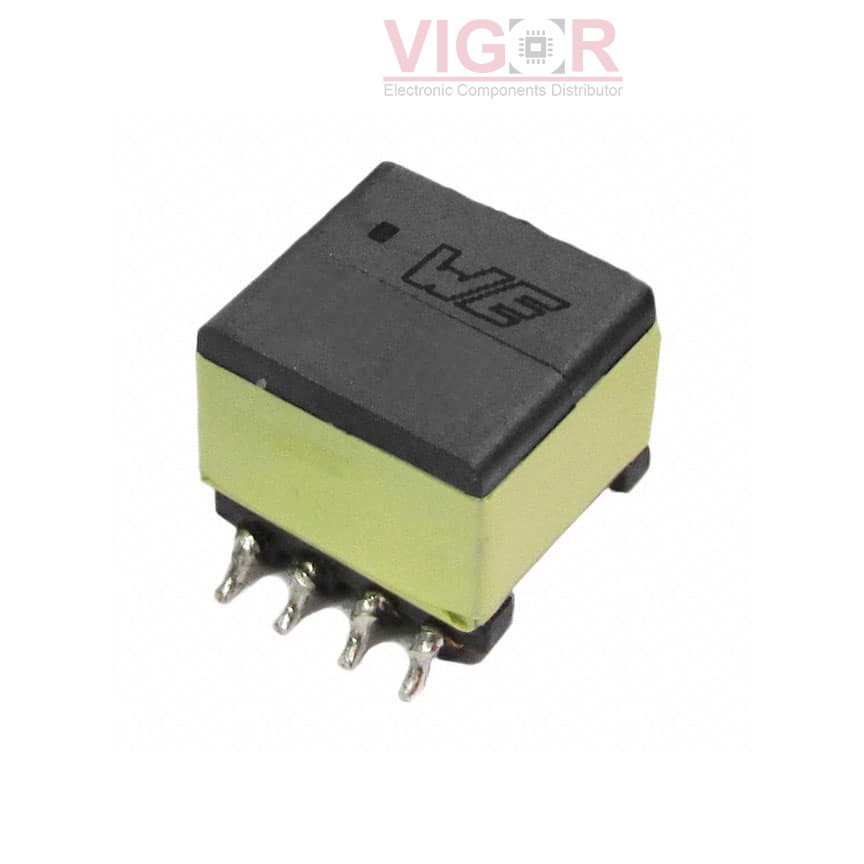

Image is for reference,
please contact us to get the real picture

Part No :

750313974

Manufacturer
Würth Elektronik Midcom
Description
TRANS FLYBACK LT8301
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
750313974 PDF
Availability
961 pieces
Unit Price
$4.93000

Current price of 750313974 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:WE-FB, MID-FLYLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT8301
Chipset Manufacturer:Linear Technology
Voltage - Primary:8 ~ 32V
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:40µH @ 10kHz
Frequency:200 ~ 300kHz
Operating Temperature:-
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.450" (11.43mm)
Footprint:0.525" L x 0.600" W (13.34mm x 15.24mm)
Style:-
