VGT22EPC-200S6A12

VGT22EPC-200S6A12

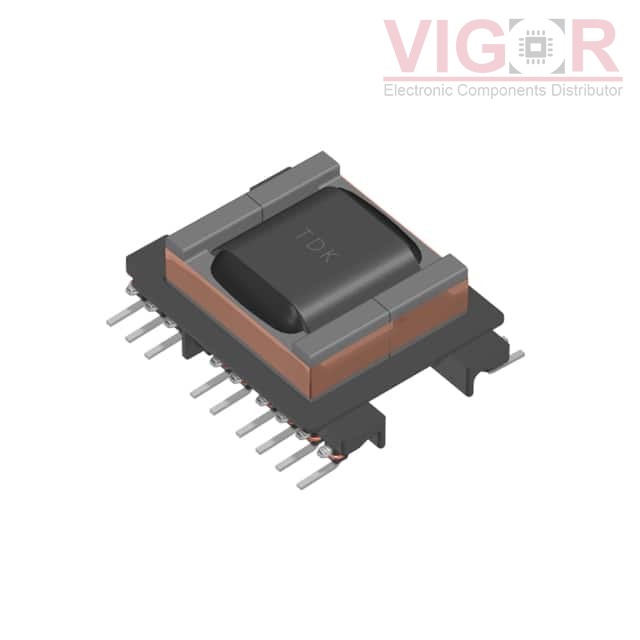

Image is for reference,
please contact us to get the real picture

Part No :

VGT22EPC-200S6A12

Manufacturer
TDK Corporation
Description
TRANSFORMERS FOR IGBT/FET
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
VGT22EPC-200S6A12 PDF
Availability
0 pieces
Unit Price
$14.54000

Current price of VGT22EPC-200S6A12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VGT22EPC-200S6A12 Specifications
Type Description
Series:VGT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For AC/DC Converters
Applications:Flyback Converters
Intended Chipset:-
Chipset Manufacturer:-
Voltage - Primary:-
Voltage - Auxiliary:-
Voltage - Isolation:2600Vrms
Inductance @ Frequency:2.5µH @ 100kHz
Frequency:-
Operating Temperature:-40°C ~ 130°C
Mounting Type:Surface Mount
Size / Dimension:1.299" L x 0.976" W (33.00mm x 24.80mm)
Height - Seated (Max):0.539" (13.70mm)
Footprint:1.299" L x 1.055" W (33.00mm x 26.80mm)
Style:Wirewound
