750315125

750315125

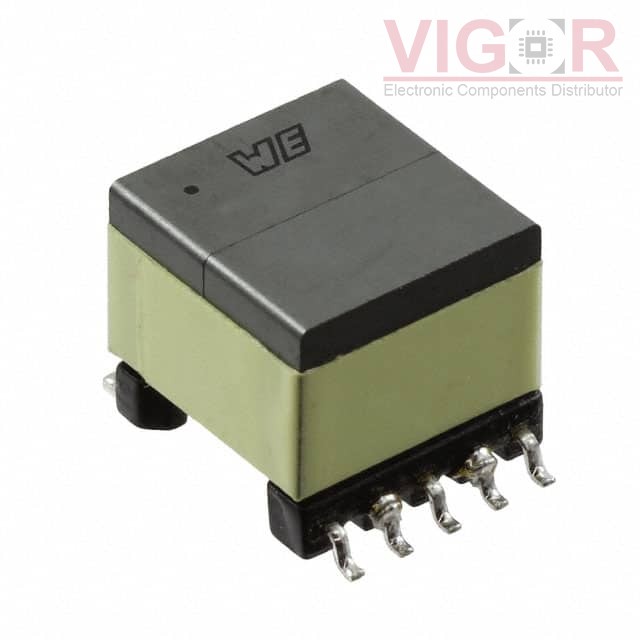

Image is for reference,
please contact us to get the real picture

Part No :

750315125

Manufacturer
Würth Elektronik Midcom
Description
XFRMR FLYBACK DC/DC CONV SMD
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
750315125 PDF
Availability
397 pieces
Unit Price
$3.74000

Current price of 750315125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750315125 Specifications
Type Description
Series:WE-FB, MID-FLYLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LT8304
Chipset Manufacturer:Linear Technology
Voltage - Primary:18 ~ 72V
Voltage - Auxiliary:-
Voltage - Isolation:1500Vrms
Inductance @ Frequency:40µH @ 10kHz
Frequency:150 ~ 300kHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Size / Dimension:-
Height - Seated (Max):0.500" (12.70mm)
Footprint:0.530" L x 0.699" W (13.46mm x 17.75mm)
Style:-
