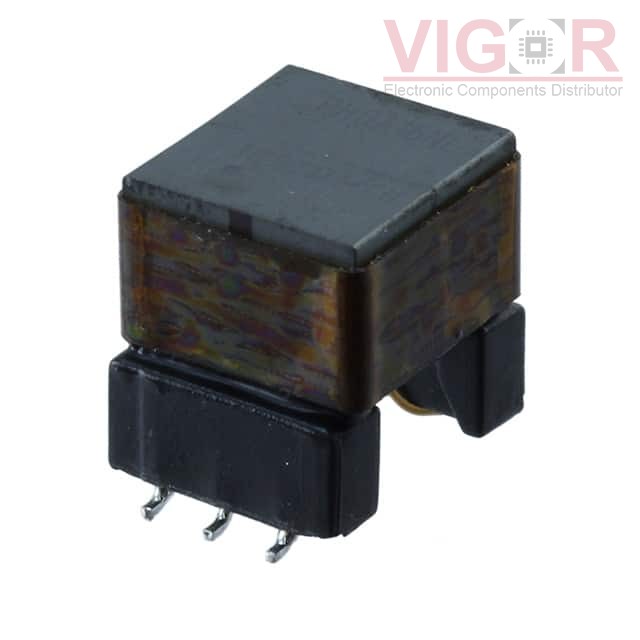

PH0416NLT

Image is for reference,
please contact us to get the real picture

Part No :: PH0416NLT

Manufacturer: PulseLarsen Antenna

Description: XFRMER FLYBACK DC/DC CONV SMD

Catalog: Switching Converter, SMPS Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: PH0416NLT PDF

Availability: 1528 pieces

Unit Price: ~~$4.11000~~

Current price of PH0416NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH0416NLT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	For DC/DC Converters
Applications:	Flyback Converters
Intended Chipset:	ACPL-32JT, ACPL-302J
Chipset Manufacturer:	-
Voltage - Primary:	8 ~ 18V
Voltage - Auxiliary:	-
Voltage - Isolation:	5000Vrms
Inductance @ Frequency:	-
Frequency:	75kHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Size / Dimension:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max):	0.502" (12.75mm)
Footprint:	0.394" L x 0.394" W (10.00mm x 10.00mm)
Style:	-

Please confirm the specifications of the products when ordering.
