750341146

750341146

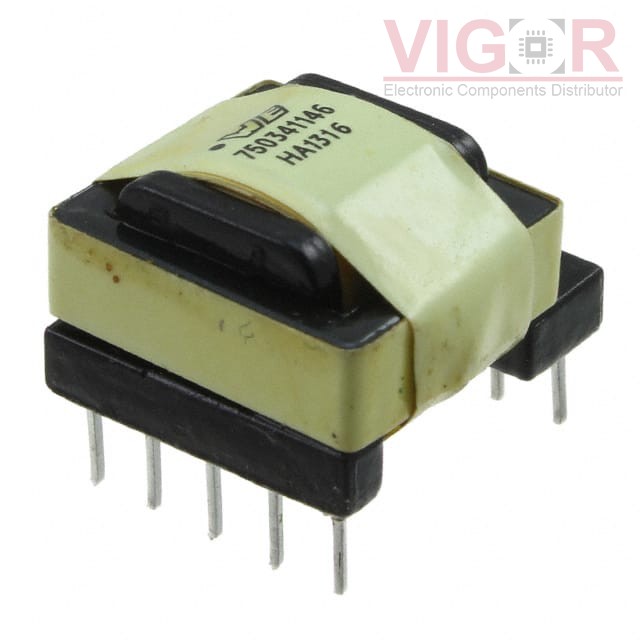

Image is for reference,
please contact us to get the real picture

Part No :

750341146

Manufacturer
Würth Elektronik Midcom
Description
FLYBACK XFRM WE-FB TI LM3445
Catalog
Switching Converter, SMPS Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
750341146 PDF
Availability
0 pieces
Unit Price
$7.39200

Current price of 750341146 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

750341146 Specifications
Type Description
Series:WE-FB
Package:Tray
Part Status:Active
Type:For DC/DC Converters
Applications:Flyback Converters
Intended Chipset:LM3445
Chipset Manufacturer:Texas Instruments
Voltage - Primary:180 ~ 265V
Voltage - Auxiliary:20V @ 50mA
Voltage - Isolation:3000Vrms
Inductance @ Frequency:750µH @ 100kHz
Frequency:60kHz
Operating Temperature:-
Mounting Type:Through Hole
Size / Dimension:0.695" L x 0.740" W (17.65mm x 18.80mm)
Height - Seated (Max):0.555" (14.10mm)
Footprint:0.695" L x 0.740" W (17.65mm x 18.80mm)
Style:-
